Description

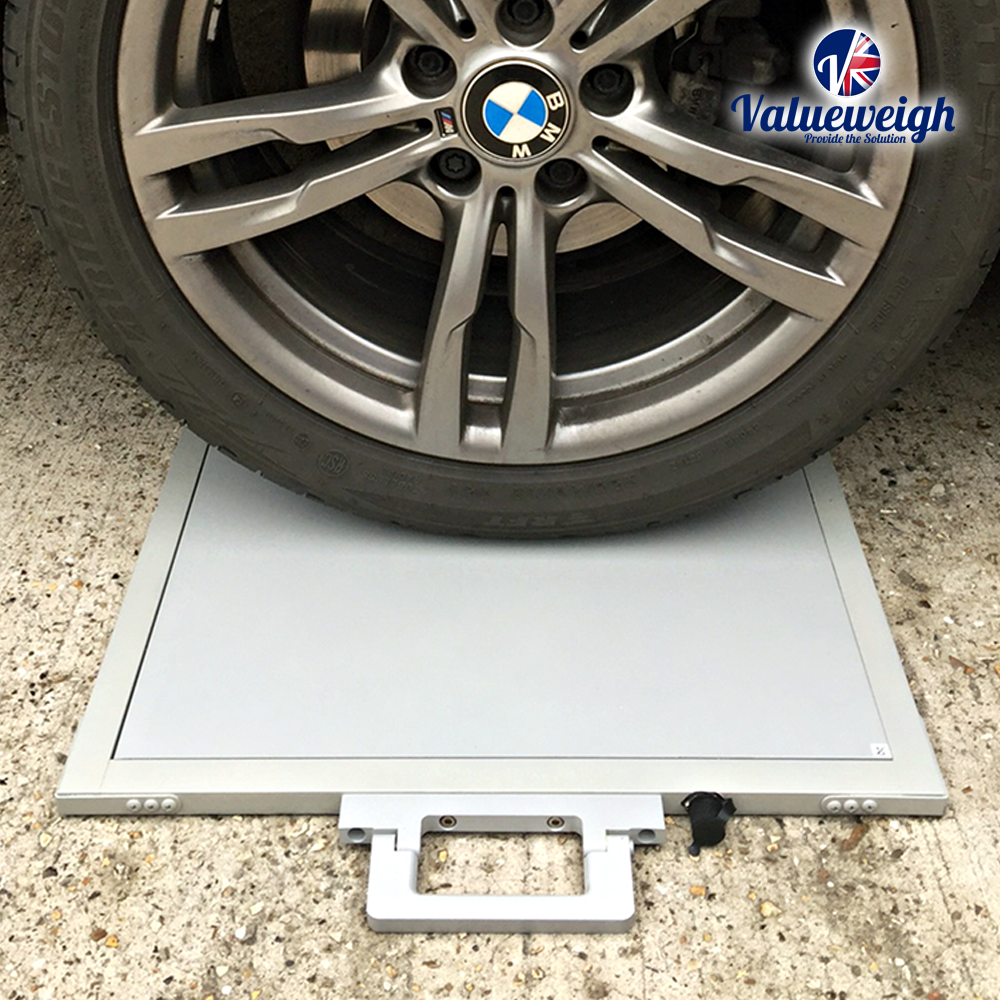

The AP Axle pads have been at the forefront of axle weighing for over 10 years and, at only 18mm high, are the slimmest, lightest and most portable weigh pad available.
A high-strength aluminium alloy construction (as used in aircraft design) ensures impressive strength and robustness.

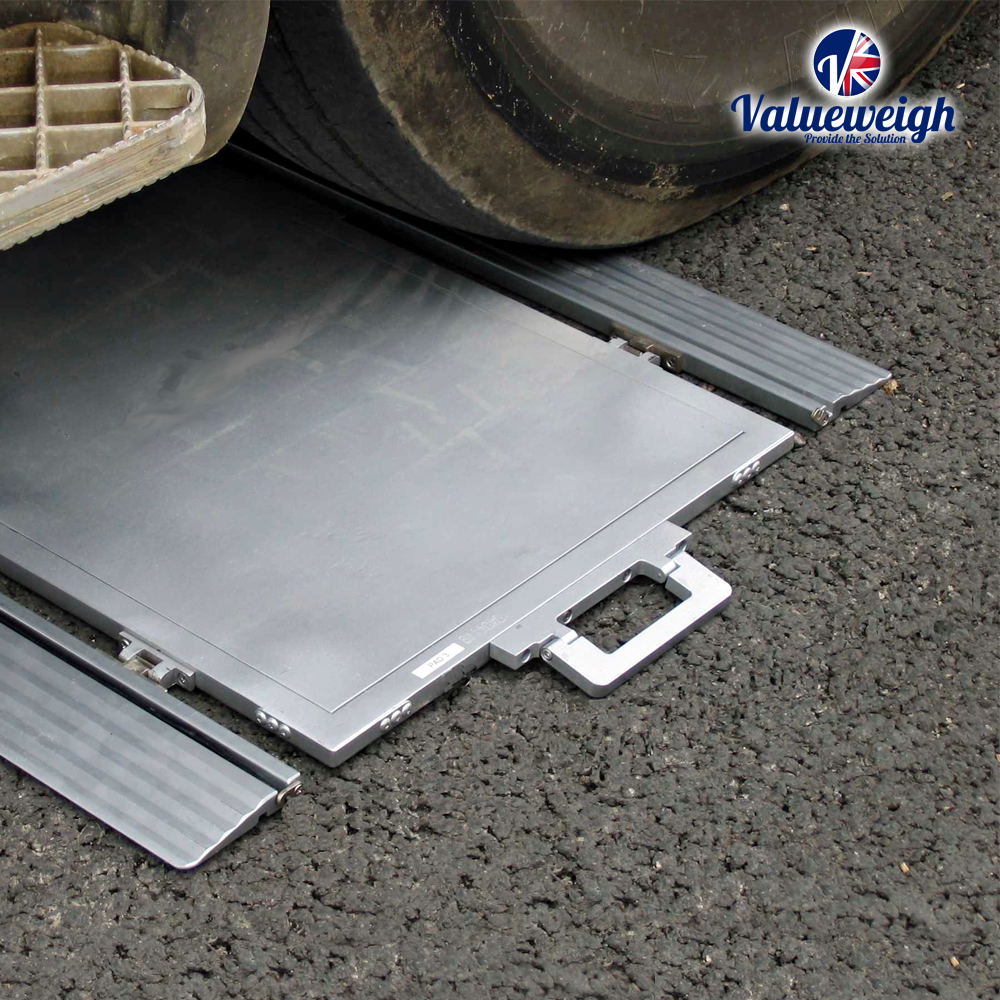

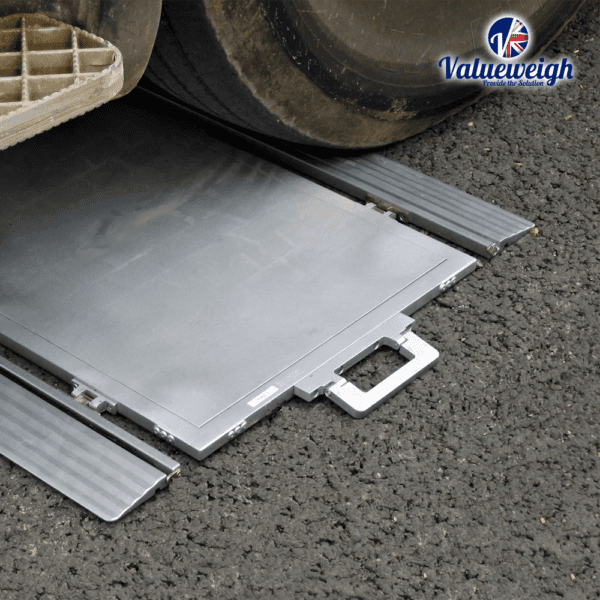

The pads have the option of two quick-release access ramps or interlocking tracking and are highly portable with a convenient carry handle, allowing them to be stored and carried to the weighing location when required.
All AP models feature detachable cables for maximum portability and quick and easy servicing.
The pads are sealed to protect against dirt and water ingress and can be used for static or dynamic axle weighing. Standard, large and over-size models are available, making the AP ideal for weighing all types of vehicles, from cars to lorries.
The AP axle weigh pads are designed to be compatible with a wide range of our weight displays and can have a number of pads linked to the same weight display.
- Made from the same material as aircrafts
- For strength and lightweight portability
- 1-year manufacturer’s warranty
- Tough and robust construction
- Convenient carry handles
- Optional ramps or tracking for easy access
- Multiple button loadcells for accurate weighing
Pad Sizes:
360mm x 290mm, 560mm x 460mm,715mm x420mm, 900mm x 620mm.
Capacities:
2,000kg, 5,000kg, 10,000kg, 20,000kg.
